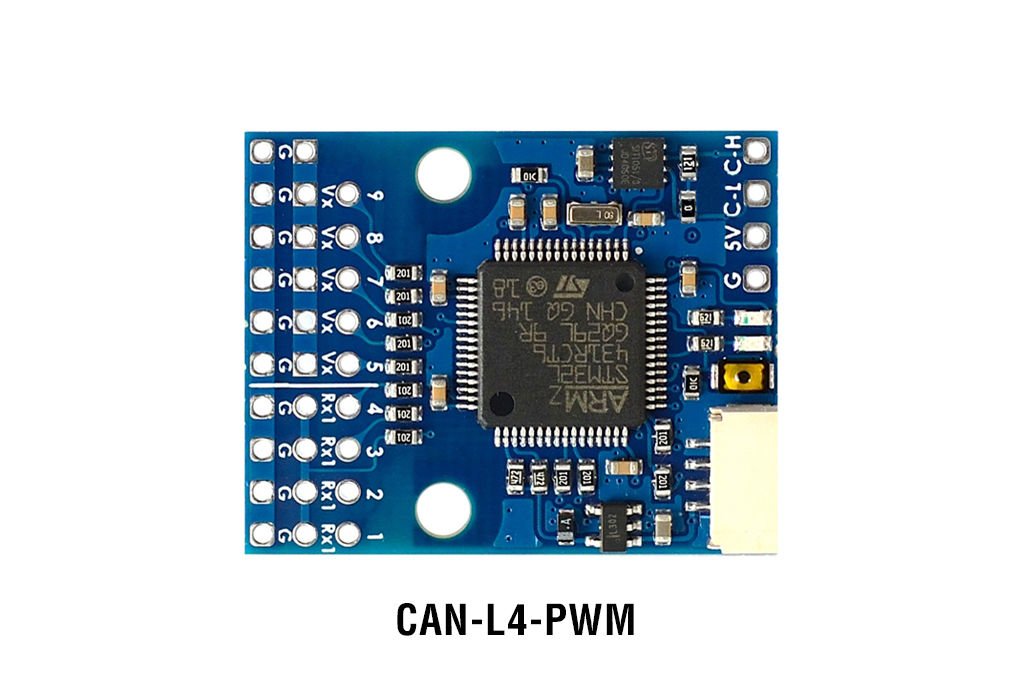

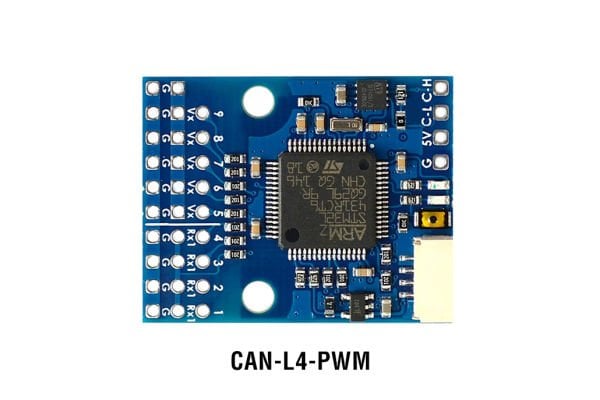

AP_Periph CAN Node CAN-L4-PWM

• CAN-L4-PWM is an Adapter Node based on ArudPilot AP_Periph firmware.

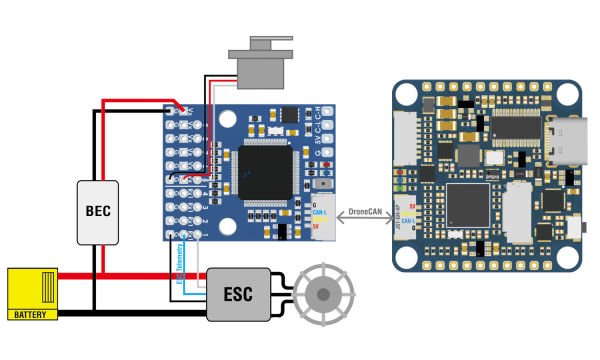

• Using this adapter to turn DShot capable ESCs into CAN ESCs, including full ESC telemetry.  and turn PWM servos into CAN servos.

Specifications

• MCU: STM32L431xC, 256KB Flash
• 1x CAN, DroneCAN Protocol
•  9x PWM outputs (8x Dshot)
• 1.5x UARTs
  • UART1, RX1
  • UART3, Tx3/ Rx3
• ST debug, SWCLK & SWDIO

• LED
  • Blue, Fast blinking,  Booting
  • Blue, Slow blinking, working
  • Red, 3.3V indicator
• Input voltage range: 4.5~5.5V  @5V pad/pin
• Power consumption: 30mA
• Operating Temperatures: -20~80 °C

• "Vx” pads are for powering servos via external BEC.  "Vx” is not connected to other components on this board.
• "Rx1” pads are for ESC Telemetry, DO NOT connect ESC BEC output to Rx1 pad.

• Physical
  • 1x JST-GH-4P(SM04B-GHS-TB) for CAN

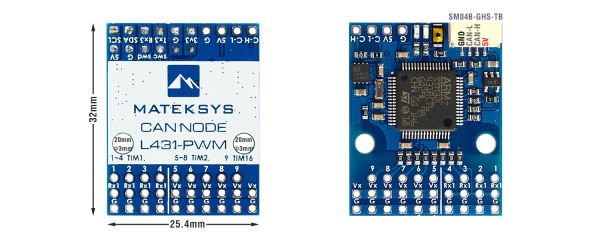

  • Board Size: 32mm*25.4mm.  3.5g
  • Mounting: 20mm. Dia.3mm
  • 3D file : CAN-L4-PWM_STEP.zip

• Firmware
  • ArduPilot AP_Periph  MatekL431-Dshot
  • Update via DroneCAN GUI Tool

Packing

• 1x CAN-L4-PWM board
• 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
