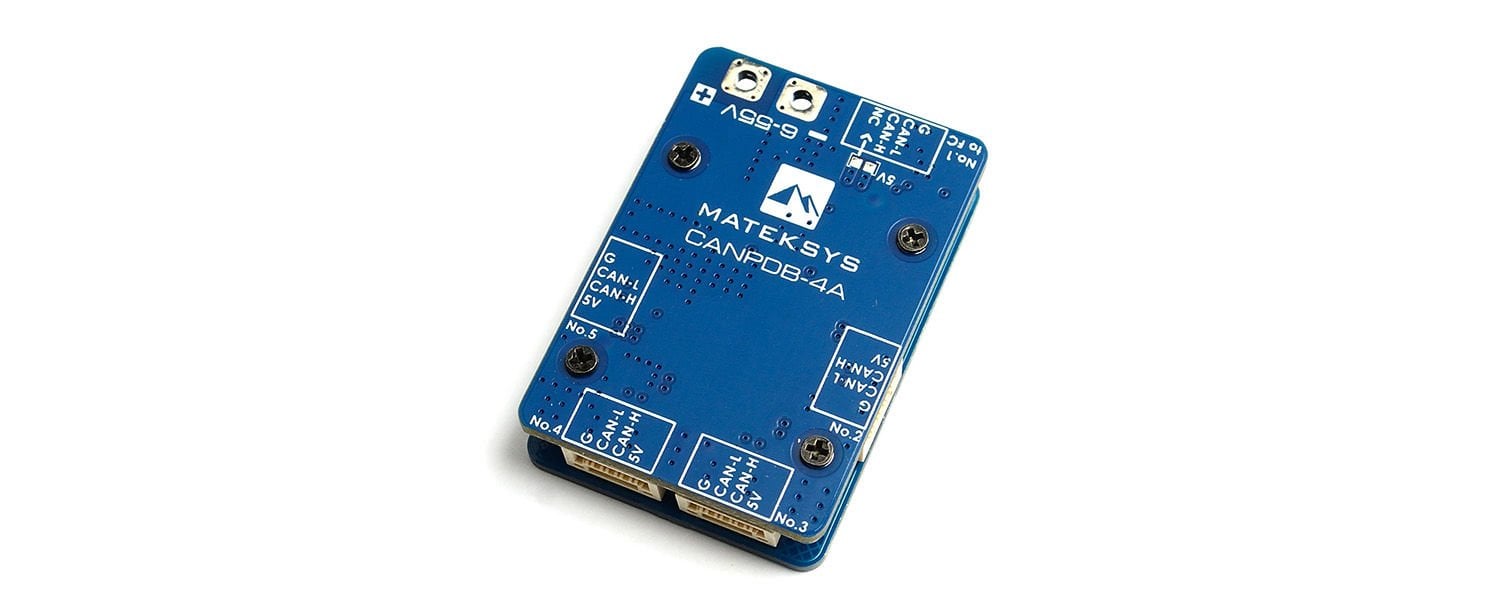

CANPDB w/ 4A BEC & JST-GH Splitter CANPDB-4A

Specifications

• 6V to 55V Operating Input Range(2S-12S Li-xx)
• 5.2V output on “5V” pin/pads
• Support total 4A Continuous load current. 1A for each JST-GH port
• Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage
• No protection for reversed input polarity
• Output Short-circuit tolerant (3 seconds)

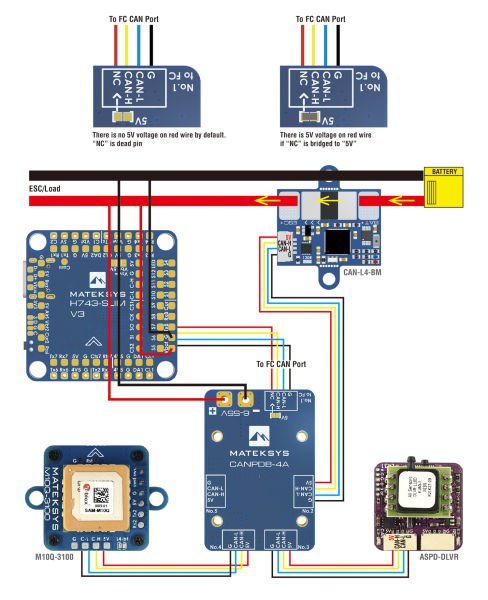

• 5x CAN-H/CAN-L are in parallel
• CAN port connector: JST-GH 4pin(SM04B-GHS-TB)

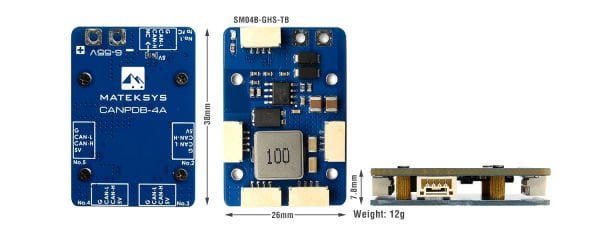

• Size & Weight: 38 x 26 x 7.8mm, 12g
• Packing: 1x CANPDB-4A,   1x JST-GH-4P to JST-GH-4P 20cm silicon wire
