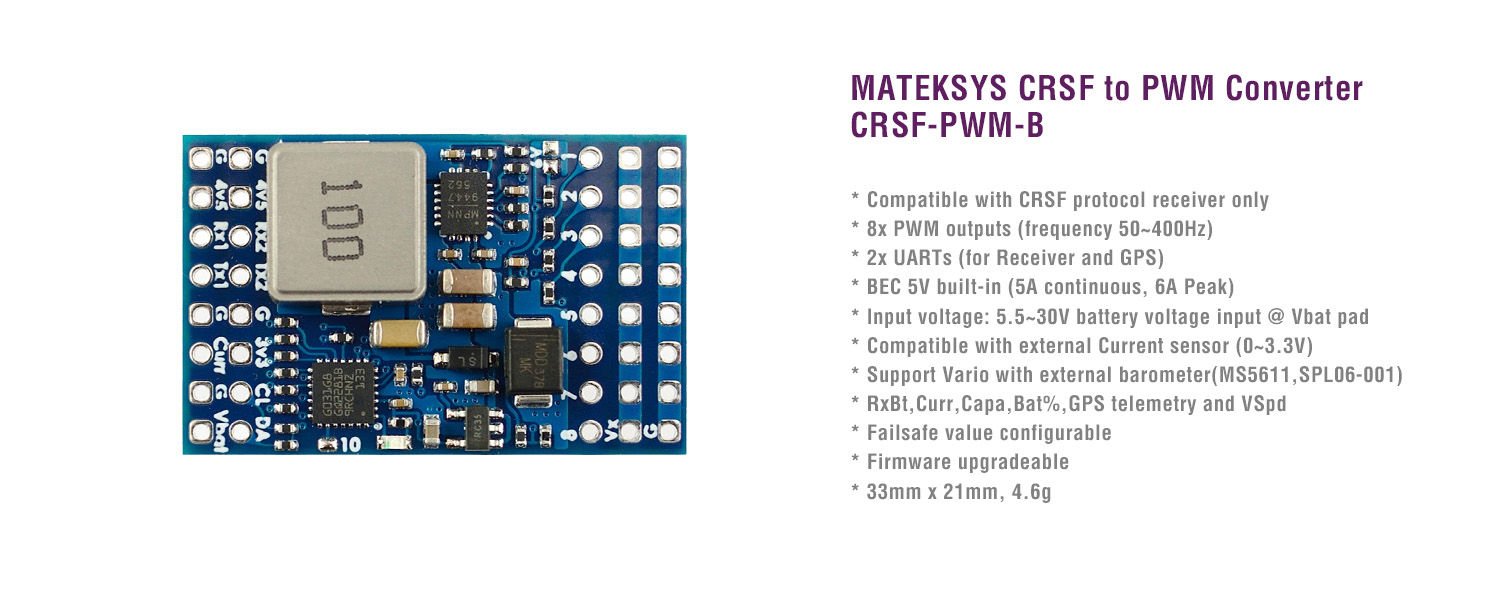

CRSF to PWM Converter CRSF-PWM-B

CRSF-PWM Converter, CRSF-PWM-B

• Compatible with CRSF protocol receiver only
• Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
• 8x PWM outputs
• PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
• 2x UARTs (for Receiver and GPS)
• Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
• 5.5~30V battery voltage input @ Vbat pad

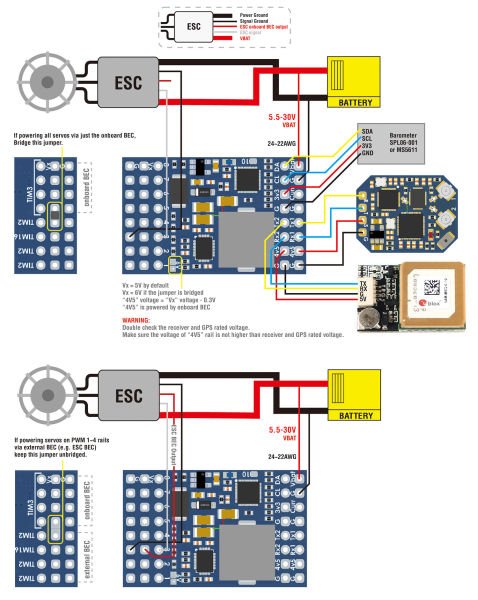

• BEC 5V built-in (5A continuous /6A Peak)
• Compatible with external Current sensor (0~3.3V)
• Vbat and Current sensor scale configurable
• Firmware upgradeable

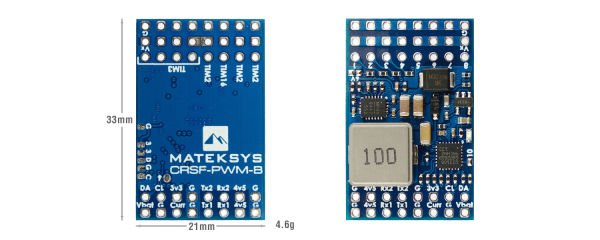

• 33mm x 21mm, 4.6g
• Packing: 1x CRSF-PWM-B,  Dupont 2.54 pins
• Included only converter
