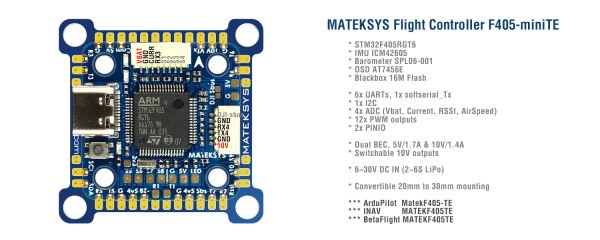

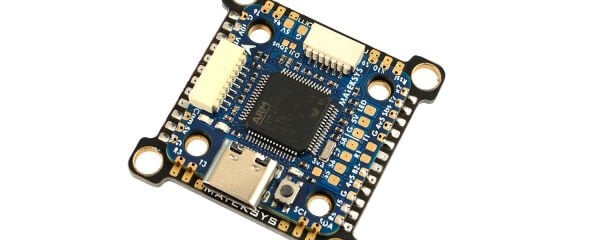

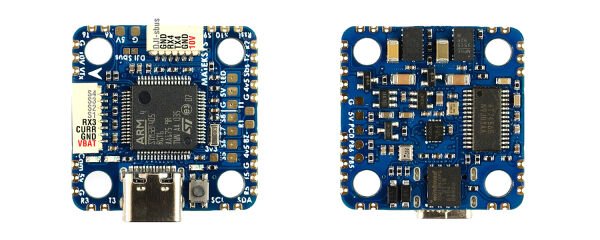

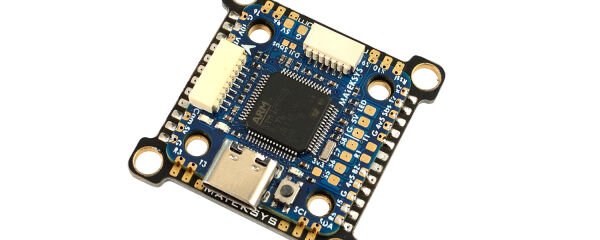

F405-miniTE Uçuş Kontrol Kartı

FC Specifications

• MCU: 168MHz STM32F405RGT6  1MB Flash
• IMU: MPU6000 (SPI1)
• Baro: DPS310 (I2C1)
• OSD: AT7456E (SPI2)
• Blackbox: MicroSD socket (SPI3)

• VCP & 6x UARTs,
• 1x Softserial_Tx option (TX2 pad, INAV)
• 10x PWM outputs(S1~S9, LED)
• 2x I2C
• 3x ADC (voltage, current, RSSI)
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
• Built in inverter on UART2-RX for SBUS input
• PPM/UART Shared: UART2-RX

• 1x SH1.0_6pin connector (4V5/G/TX4/RX4/DA2/CL2) for GPS/compass
• 1x SH1.0_6pin connector for external USB and buzzer

• DJI FPV OSD: any spare UART
• FrskyOSD: any spare UART

Power

• 6~30V DC IN (2~6S LiPo)
• 132A high-precision Current Sense (Scale 250)
• PDB/Current sense resistor: 60A continuous, 132A burst.
• BEC 5V 2A for FC & Peripherals
• BEC Vx 5A for servos, 5V/ 6V option
• BEC 8V 1.5A for VTX and camera
• LDO 3.3V 200mA
• Battery Voltage Sensor: 1k:10k

FC Firmware

• INAV Target: MATEKF405SE
• ArduPilot hwdef: MATEKF405WING

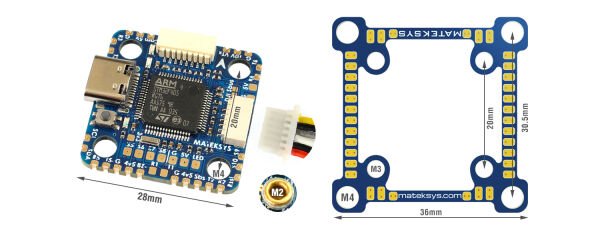

Physical

• Dimensions: 44 x 29 x 10 mm
• Mounting: 25 x 25mm, Φ2mm
• Weight: 20g w/ bottom plate and USB/buzzer adapter

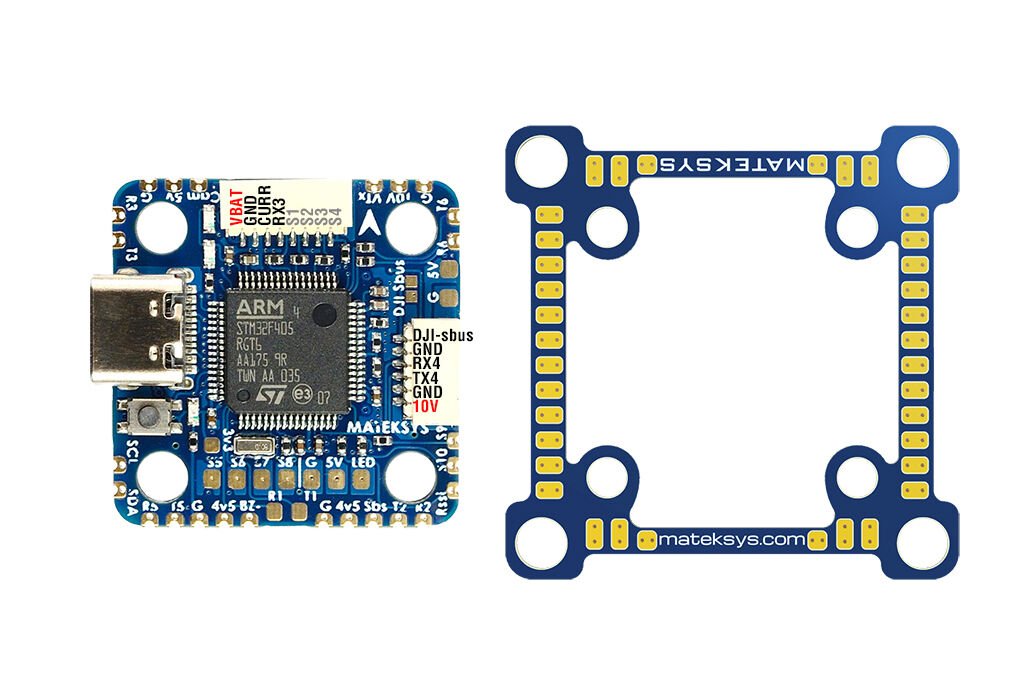

Including

• 1x FC F405-WSE
• 1x USB(Type-C)/Buzzer (Active) Adapter
• 1x Bottom plate, 44 x 29mm
• 2x JST-SH-6P to JST-SH-6P cables, 20cm
• 5x Brass standoffs, M2*4mm
• 10x screws, M2*3.5mm
• Dupont 2.54 pins  (Board is shipped unsoldered)
• GPS DAHİL DEĞİLDİR. AYRICA SATILMAKTADIR.
