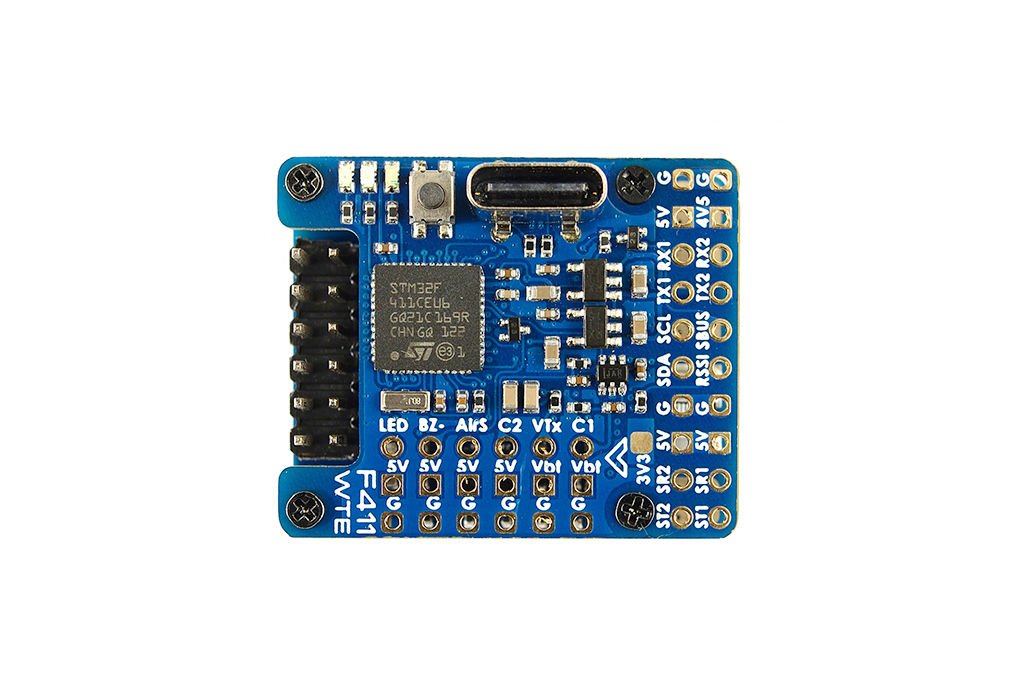

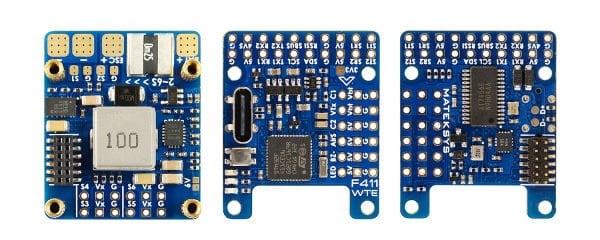

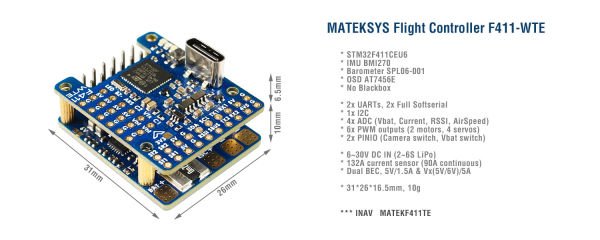

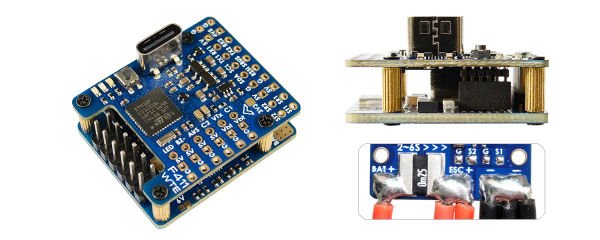

F411-WTE Uçuş Kontrol Kartı

FC Specifications

• MCU: 100MHz STM32F411CEU6
• IMU: BMI270 (SPI)
• Baro: SPL06-001 (I2C)
• OSD: AT7456E (SPI)
• Blackbox: No
• 2x Uarts
• 2x Full Softserial
• 6x PWM outputs (2x Motors, 4x Servos)
• 1x I2C
• 4x ADC (VBAT, Current, RSSI, AirSpeed)
• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
• Built in inverter on UART2-RX for SBUS input
• Switchable Dual Camera Inputs
• Vbat power ON/OFF switchable for VTX and camera
• PPM receiver: not supported

Power

• 6~30V DC IN (2~6S LiPo)
• 132A Current Sense (Scale 250)
• PDB/Current sense resistor: 90A continuous, 132A burst.
• BEC 5V 1.5A for FC & Peripherals
• BEC Vx 5A for servos, 5V/ 6V option
• Vbat for VTX and camera (ON/OFF switchable)
• LDO 3.3V 200mA
• Battery Voltage Sensor: 1k:10k

FC Firmware

• INAV Target: MATEKF411TE ( INAV4.1 or newer)

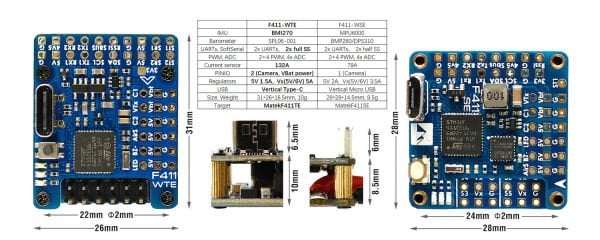

Physical

• Dimensions: 31 x 26 x 16.5 mm
• Mounting: 22 x 22mm, Φ2mm
• Weight: 10g

Including

• 1x FC F411-WTE
• Dupont 2.54 pins  (Board is shipped unsoldered)
