F722-WPX Uçuş Kontrol Kartı

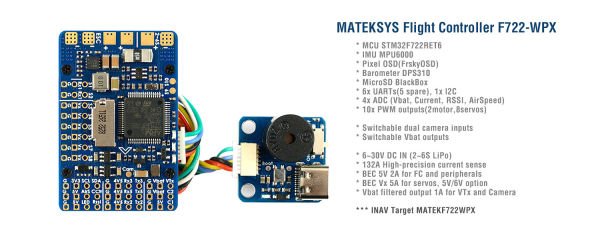

FC Specifications

• MCU: 216MHz STM32F722RET6
• IMU: MPU6000 (SPI)
• Baro: DPS310 (I2C)
• OSD: Pixel OSD/FrskyOSD (Uart6)
• Blackbox: MicroSD socket (SPI)

• 6x UARTs(5 Spare) with built-in inversion
• 1x Softserial_Tx option
• 10x PWM outputs
• 1x I2C
• 4x ADC (VBAT, Current, RSSI, AirSpeed)

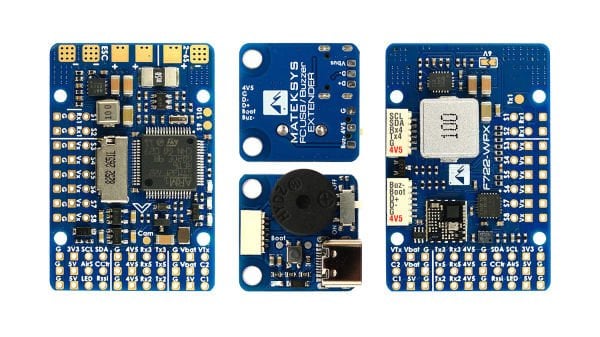

• 1x SH1.0_6pin connector (4V5/G/TX4/RX4/SDA/SCL) for GPS/compass
• 1x SH1.0_6pin connector for external USB and buzzer

• Dual Camera Inputs switcher
• Vbat filtered power ON/OFF switcher

• PWM camera menu control: Not supported by INAV
• DJI FPV air unit: any spare UART

Power

• 6~30V DC IN (2~6S LiPo)
• 132A high-precision Current Sense (Scale 250)
• PDB/Current sense resistor: 60A continuous, 132A burst.
• BEC 5V 2A for FC & Peripherals
• BEC Vx 5A for servos, 5V/ 6V option
• Vbat filtered output 1A for VTx and Camera
• LDO 3.3V 200mA
• Battery Voltage Sensor: 1:10 (Scale 1100)

FC Firmware

• INAV target: MATEKF722WPX

Physical

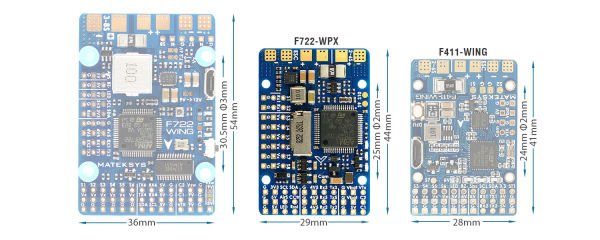

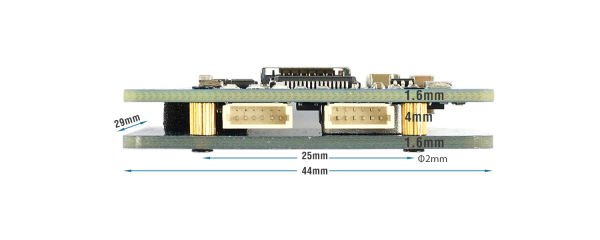

• Dimensions: 44 x 29 x 10 mm
• Mounting: 25 x 25mm, Φ2mm
• Weight: 20g w/ bottom plate and USB/buzzer adapter

Including

• 1x FC F722-WPX

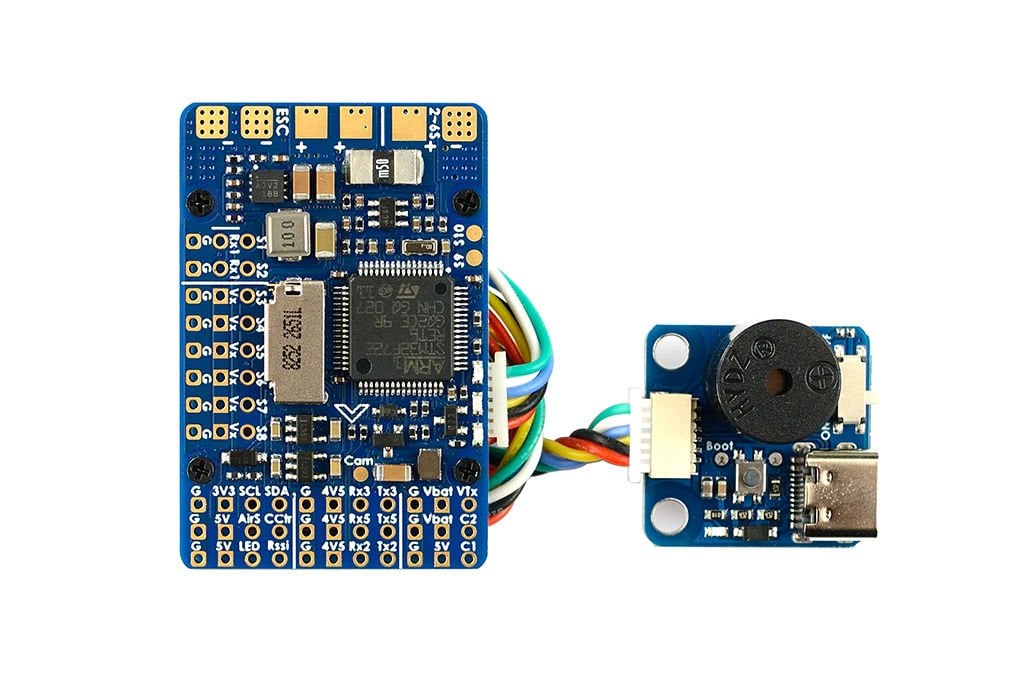

• 1x USB(Type-C)/Buzzer (Active) Adapter
• 1x Bottom plate, 44 x 29mm

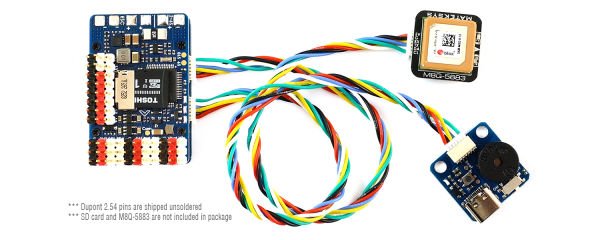

• 2x JST-SH-6P to JST-SH-6P cables, 20cm
• 5x Brass standoffs, M2*4mm
• 10x screws, M2*3.5mm
• Dupont 2.54 pins  (Board is shipped unsoldered)
• GPS DAHİL DEĞİLDİR. AYRICA SATILMAKTADIR.
