MATEKSYS mLRS MAVLink 2.4GHz TX Module Kit, mR24-30-TX

Specifications

• mR24-30
  • STM32G431KB,  mLRS firmware
  • LoRa SX1281 with TCXO
  • PA/LNA SKY68383-11
  • RF Frequency: 2.4GHz ISM
  • RF power: 13dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
  • Antenna connector: IPEX MHF-1 to SMA/RP-SMA
• mRx-Tx Adapter
  • Built-in HC-04 Bluetooth module
  • Built-in 5V fan controller,  running if ourput power>=500mW
  • TX2: RC IN(CRSF)
  • one buttom for DFU mode and Bind
  • Red and Green LED for mLRS status
  • Blue LED for bluetooth status
  • Power supply: 5-13V DC @ JR_PIN3 (VIN)

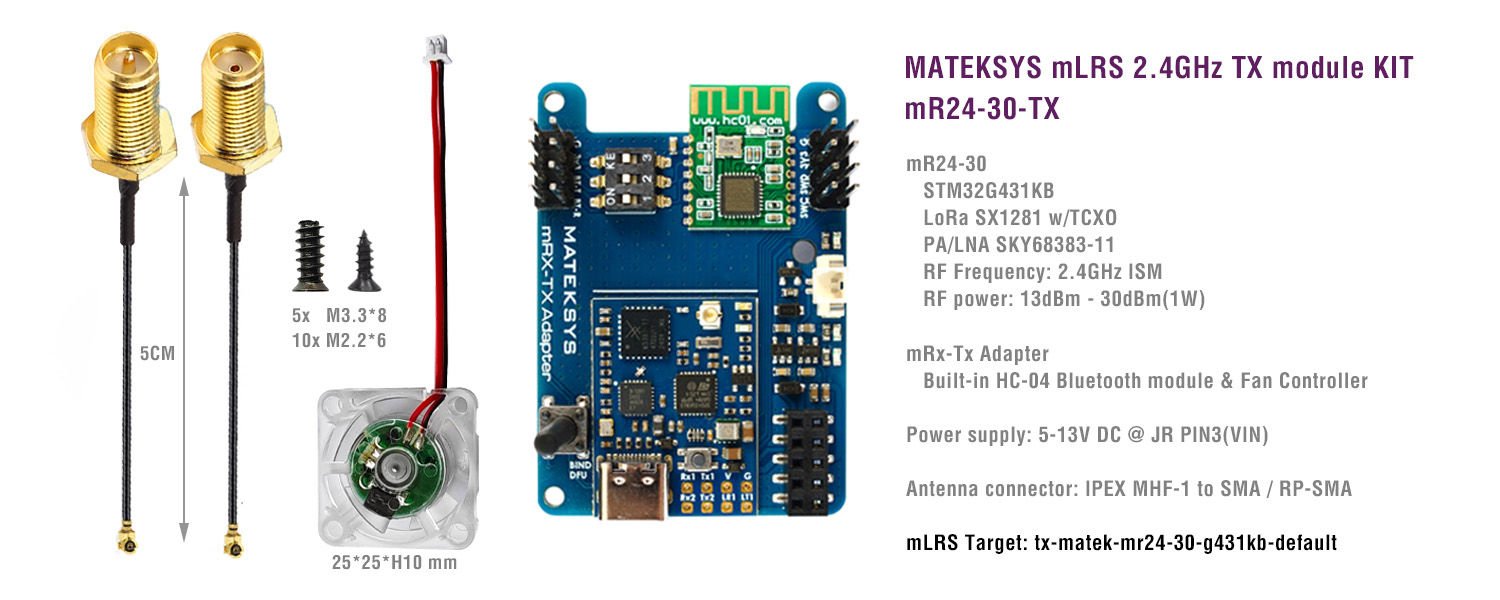

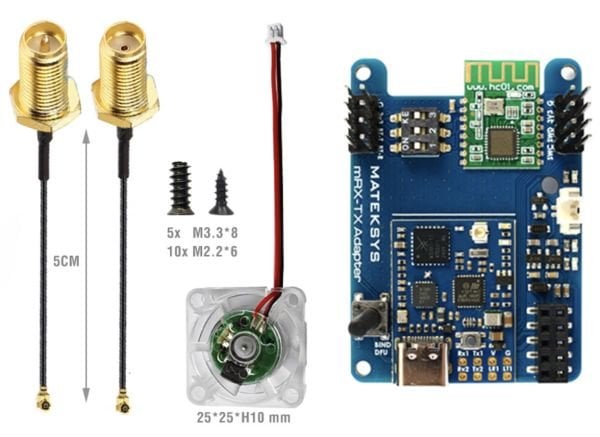

• Packing:
  • 1x mR24-30-TX
  • 1x IPEX MHF1 to SMA adapter cable 5cm
  • 1x IPEX MHF1 to RP-SMA adapter cable 5cm
  • 1x 5V Fan (25*25*10mm) and some screws

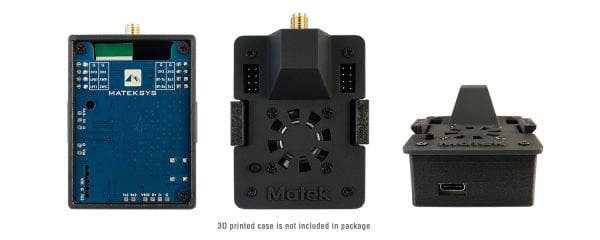

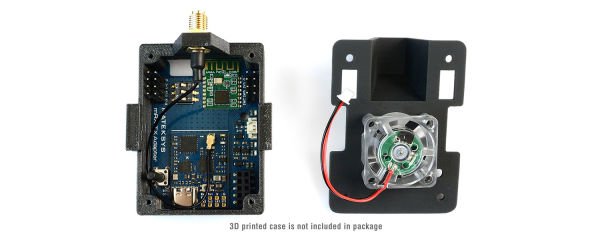

  • no SMA antenna & 3D printed Case packed
• Downloads:
  • JR Bay Case 3D print (stl)
  • mRX-TX Adapter 3D (step)

LED Status

• [Red flashing 2Hz], not connected to transmitter
• [Green flashing 1Hz], connected to transmitter
• [Red and Green alternately ], Binding mode enabled

Binding

• After powering on,  press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
• https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md

Firmware

• mLRS https://github.com/olliw42/mLRS/tree/main/firmware/pre-release-stm32
• Target:  tx-matek-mr24-30-g431kb-default

Tips

• mLRS Github  & Documentation
• mLRS Discord
• mLRS Facebook group
