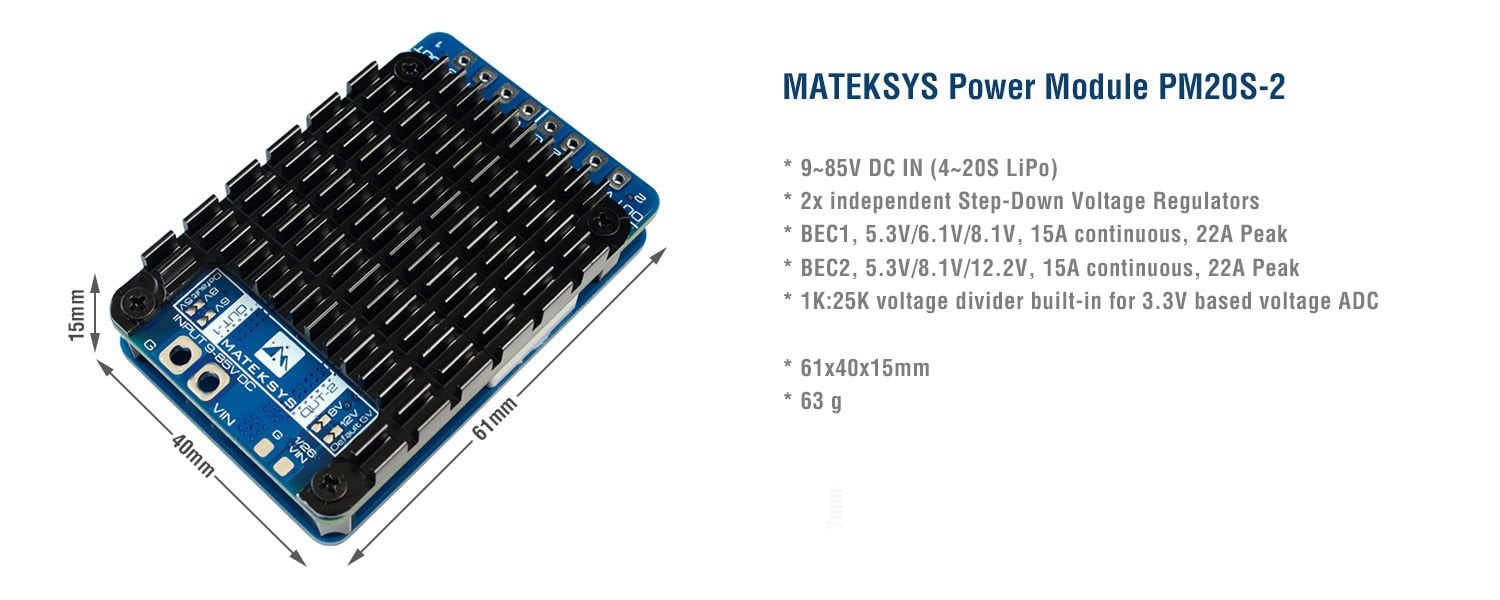

MATEKSYS Power Module PM20S-2

• PM20S-2 is made with 100V DC components.
• Support 9V to 85V DC operating Input voltage with 85V TVS protection
• 2x independent Step-Down Voltage Regulators

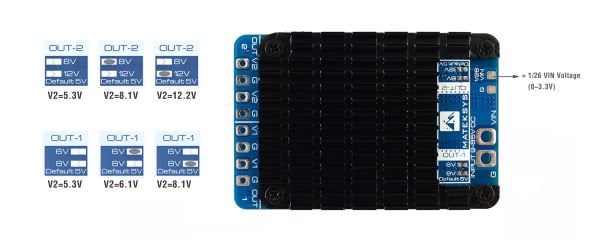

• Regulator 1 ,  5.3V / 6.1V / 8.1V output options.  supports typical continuous output current of up to 15A, Peak current of up to 22A.
• Regulator 2 ,  5.3V / 8.1V / 12.2V output options.  supports typical continuous output current of up to 15A, Peak current of up to 22A.
• 1K:25K voltage divider built-in for 3.3V based voltage ADC

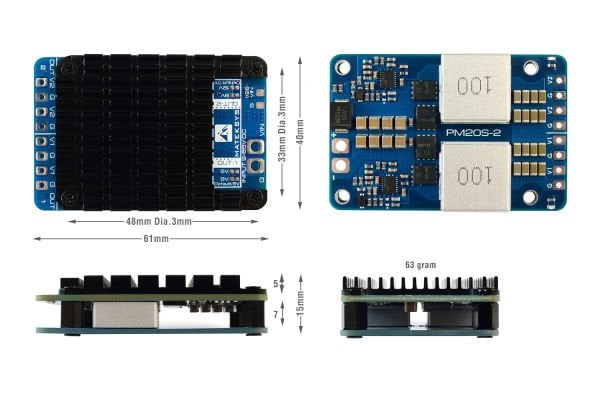

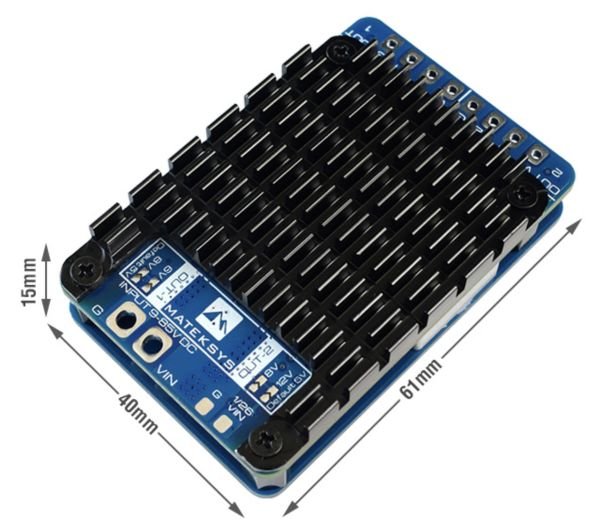

• Size & Weight: 61x40x15mm, 63g
• 3D step file PM20S-2.zip

Regulator 1

• Output voltage 5.3V / 6.1V / 8.1V options.
• Output voltage tolerance 1.5%
• Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
• Supports typical continuous output current of up to 15A,  Peak current of up to 22A.
• Output ripple  25mV (VIN=42V,  Output 5.3V @ 5A),  35mV (VIN=58V,  Output 5.3V @ 15A)
• Standby current: 10~30mA
• Reverse Input voltage protection: No
• Thermal Shutdown 150C
• Output Short-circuit tolerant (1 seconds)
• Overcurrent protection & self-recovery
• Tip: Input voltage >= 15V is required for continuous output current of 15A

Regulator 2

• Output voltage 5.3V / 8.1V/12.2V options.
• Output voltage tolerance 1.5%
• Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
• Supports typical continuous output current of up to 15A,  Peak current of up to 22A.
• Output ripple  58mV (VIN=58V,  Output 12V @ 5A)
• Standby current: 10~30mA
• Reverse Input voltage protection: No
• Thermal Shutdown 150C
• Output Short-circuit tolerant (1 seconds)
• Overcurrent protection & self-recovery
• Tip: Input voltage >= 15V is required for continuous output current of 15A

Packing

• 1x PM20S-2
