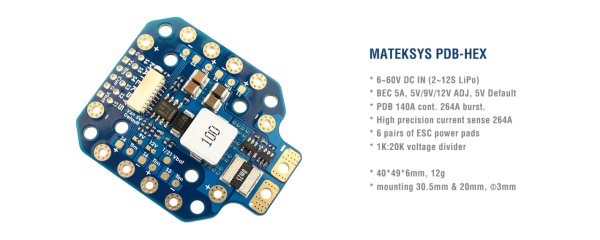

PDB-HEX 12S w/Curr 264A, BEC 5A

PDB

• Input voltage range: 6~60V (2~12S LiPo)
• PDB/current sense resistor: 140A cont, 264A burst.
• ESC power pads: 60A cont. 100A burst
• 6x ESC power /signal/ telemetry pads
• Current Senor: 264A,  3.3V ADC
• Current Scale 125(INAV/BF),  BATT_AMP_PERVLT  80 (ArduPilot)

JST-SH-8P Connector and Pads

• Vbat: Battery voltage
• G: ground
• Curr: current signal
• Tlm: Duplicates Tlm pads for ESC telemetry
• S1/S2/S3/S4/S5/S6: ESC signal
• Vx: Regulator output

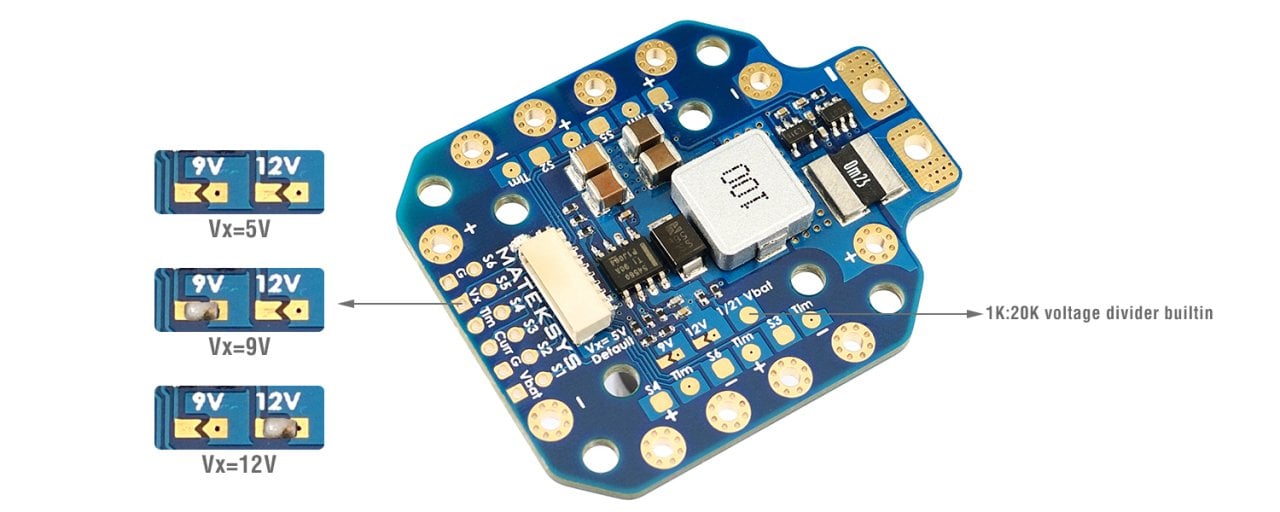

BEC Vx output (5V default)

• Vx= 5V by default,   Continuous 5 Amps
• Bridge 9V jumper,  Vx= 9V,  Continuous 4 Amps,  Max.5A
• Bridge 12V jumper,  Vx= 12V, Continuous 4 Amps,  Max.5A
• Output Short-circuit tolerant (1 seconds)
• Overcurrent protection & self-recovery

Voltage divider

• 1K:20K resistors
• Output 1/21 Vbat voltage

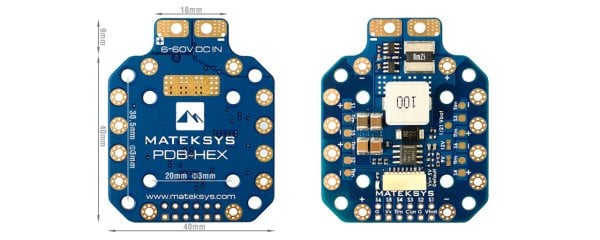

Physical

• Mounting: 30.5 x 30.5mm, 20 x 20mm, Φ3mm
• Dimensions: 49 x 40 x 6 mm
• Weight: 12g

Including

• 1x PDB-HEX

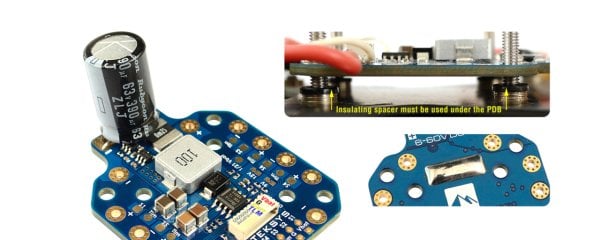

• 1x Rubycon ZLJ 63V 390uF
• 1x JST-SH1.0_8pin cable, 5cm
• 2x JST-SH1.0_8pin connectors
