Lightware

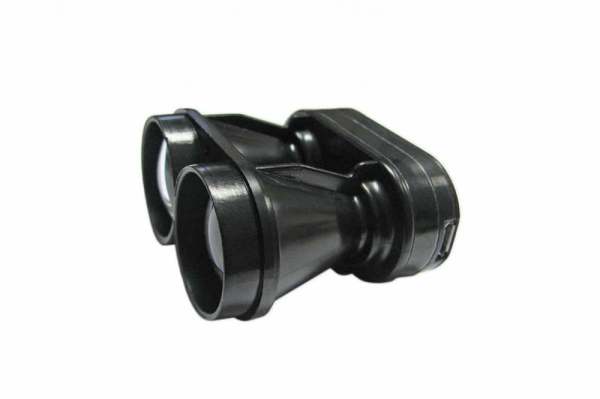

SF30-C 100m Laser Altimeter Lidar Rangefinder
0 - Yorum Yap
Stok Kodu
LW-01-06-SF30-C1
13.991,23 TL KDV Dahil
1.313,66 TL'den
başlayan taksitlerle!
başlayan taksitlerle!
The SF30/C laser measurement sensor provides real time, accurate altitude (AGL) measurements for UAVs. The lightweight 36 gram design features a time-of-flight range up to 100 meters, and an update rate up to 20K readings per second. Typical applications:
- Assist with takeoff, landing and hovering
- Obstacle warning and collision avoidance
- Terrain following
- Mapping.
USB, serial, analog and alarm outputs enable easy system integration. The SF30/C is ArduPilot compatible, and laser Class 1M eye safe.
Resources
Documents
Support software
• LightWare Terminal software (Rev 1.3.1)
2D & 3D CAD files
• SF10 SF11 SF30 SF33 Housing assembly - Rev 5 (LA 000_059) (IGES file) • SF10 SF11 SF30 SF33 Mounting bracket - Rev 0 (LW 000_170) (IGES file)
APIs & intergraion samples
• USB example (Python) • Serial example (Arduino) • Serial example (RaspberryPi C/C++) • Serial example (NodeJS)
