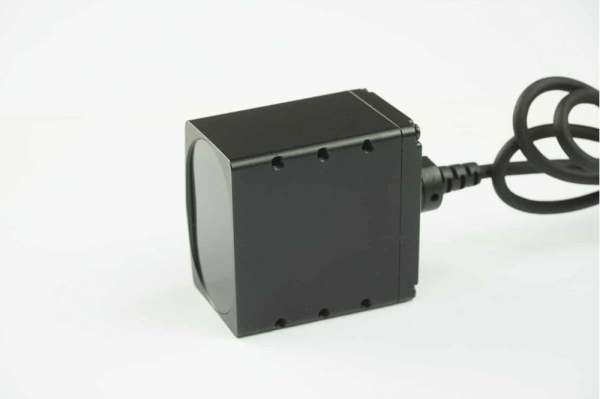

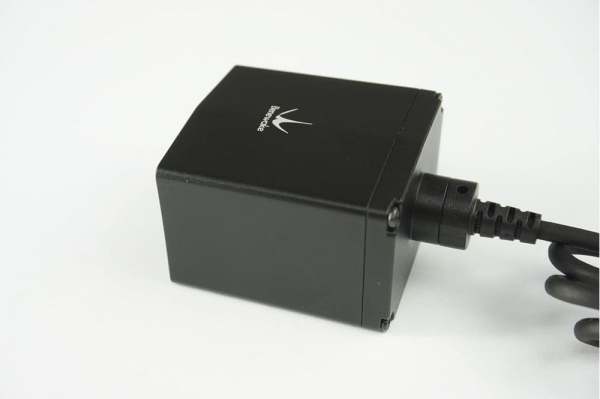

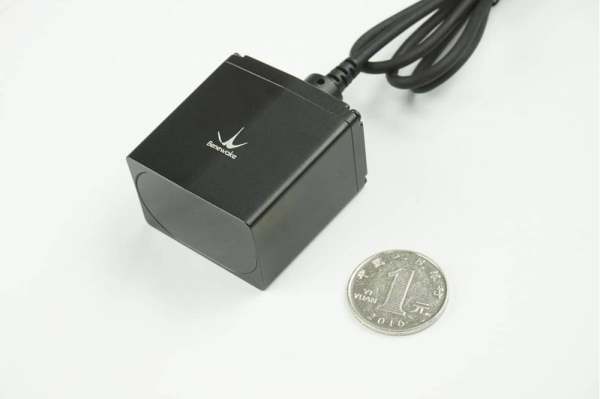

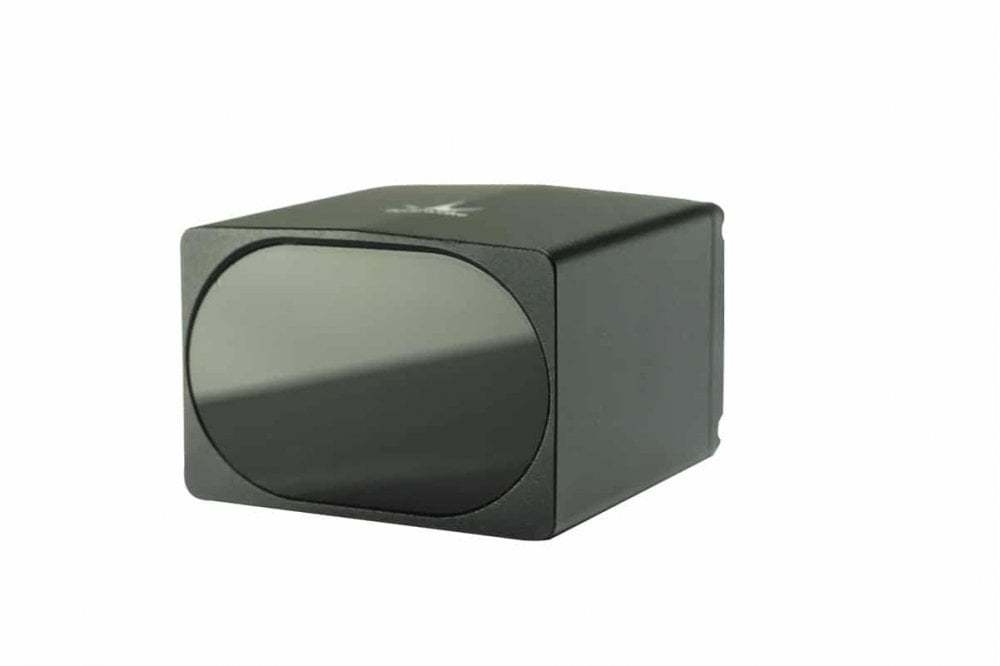

TF03 - 100m LiDAR (RS485-RS232- 6-24v)

he new TF03 LiDAR from Benewake up to 100m range, IP67,

This is the RS485/RS232 Version with 6-24V input

TF03 LiDAR Long-range distance sensor Industrial Level, Long range 180m

As the third generation product of TF series, TF03 inherits the cost-effective and compact- integration characteristics of the previous two generations. Meanwhile, TF03 upgrades more than ten key parameters and offers multiple expansion functions to meet the various demands in different application areas. The product is applicable to the terrain following of drones, the collision avoidance of cars, intelligent transportation and industrial safety warning.

Excellent Performance, Compact Size

TF03 adopts the pulsed time-of-flight principle. The unique design of the optical system and the signal processing circuit improves the detecting range, while maintains a compact size. In addition to increasing the range to more than 100 meters, the key parameters also have excellent performance in the whole range, such as distance resolution, accuracy, repeatability and detection frequency.

High Level of Protection Multiple Interfaces Supported

The shell of TF03 is made of aluminium alloy and infrared band-pass glass to improve the overall strength of the machine. The level of protection is IP67, which can be applied in various extreme environments. The TF03 supports multiple interfaces, including RS232 and RS485 (UART and CAN See other Listing) , which can satisfy different applications.

Customized parameters

Multiple parameters of TF03 can be configured by customers, such as the measuring frequency, baud rate, trigger mode, over-range assignment, etc. TF03 is also equipped BootLoader function, enabling users to upgrade product firmware locally. For more details about the parameter configuration, please refer to TF03 Operation manual. Product manual and software here
