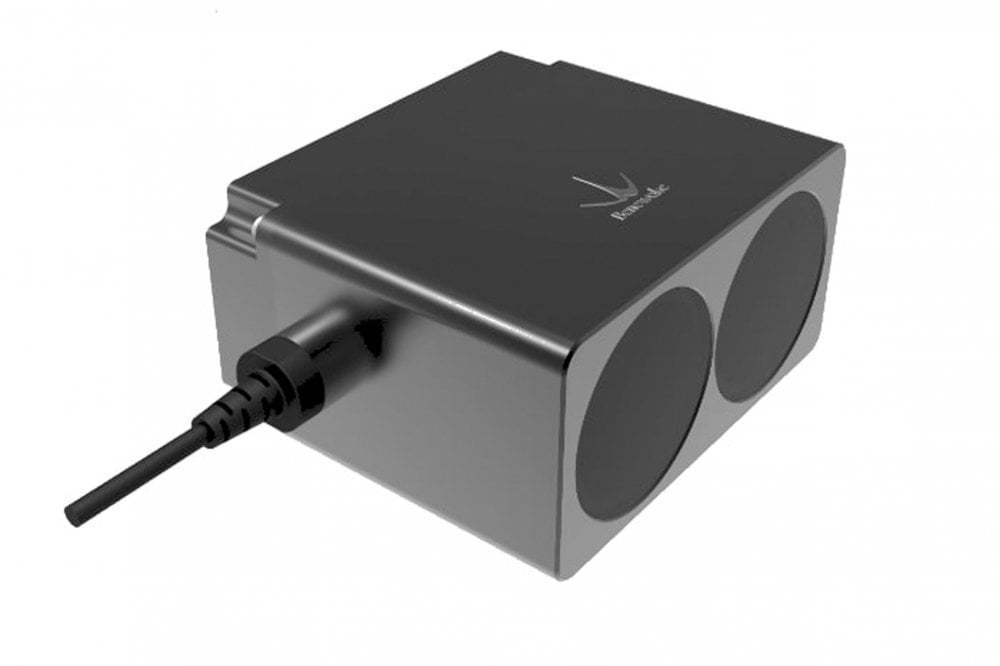

TF350 - 350m LiDAR Long Range TF03-350 UART-CAN
başlayan taksitlerle!
Accurate laser distance sensor operating in the range from 0.1 to 350 m with an accuracy of 0.1 m. the supply Voltage is 5 V. The Device communicates using UART interface or CAN. Enclosure rating IP67.
TF350 is an industrial single-point ranging LiDAR, made for intelligent transportation, industrial drones, automobiles, industry and other applications. TF350 belongs to the same series as TF03, but its range is much longer with a measurement frequency of up to 10KHz. Multiple communication interfaces are supported in its IP67 high-intensity casing. In addition, the TF350 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment. Different built-in operating modes let customers change parameters and configuration to meet their need.
Specifications
- Range: Up to 180 m
- Blind zone: Minimum 0.1 m
- Accuracy:
- Frame rate: Up to 10 KHz
- Anti-glare: 100 Klux
- Measuring range: 0.1-180 m
- Working temperature: -25°-60°
- Communication interface: UART/CAN
- Field of view: 0.5°
- Weight: 77 g
